  • IOS开发之集合视图中的可重用对象

    2019-01-21 16:52:16 3668
           前面我们讲到了表视图的可重用对象,没多大印象的朋友可查看该文《IOS开发之表视图的可重用对象》再温习一遍。今天,南昌APP开发公司主要为大家介绍一下IOS开发中集合视图中的可重用对象。

           集合视图在iOS 6之后才可以使用,它也有两种子视图采用可重用对象设计,它们是单元格视图和补充视图,这两个视图都继承自UICollectionReusableView,使用时需要自己编写相关代码。

           1、单元格视图
           在集合视图中,我们可以使用UICollectionView的dequeueReusableCellWithReuseIdentifier:forIndexPath:方法获得可重用的单元格,模式代码如下:

           override func collectionView(collectionView: UICollectionView,
            cellForItemAtIndexPathindexPath: NSIndexPath) ->
            UICollectionViewCell {
            var cell = collectionView.dequeueReusableCellWithReuseIdentifier("Cell",
            forIndexPath: indexPath) as Cell
            ......
            return cell
           }

           - (UICollectionViewCell *)collectionView:(UICollectionView *)
            collectionView cellForItemAtIndexPath:(NSIndexPath *)indexPath
           {
            Cell *cell = [collectionView dequeueReusableCellWithReuseIdentifier:
            @"CellIdentifier" forIndexPath:indexPath];
            ......
            return cell;
           }

           在上述代码中,collectionView:cellForItemAtIndexPath:方法是集合视图的数据源方法,其中Cell是我们自定义的继承自UICollectionReusableView的单元格类。使用dequeueReusableCellWithReuseIdentifier:时,需要使用故事板设计UI,并且需要将单元格的Identifier属性设置为Cell(如图1所示)。

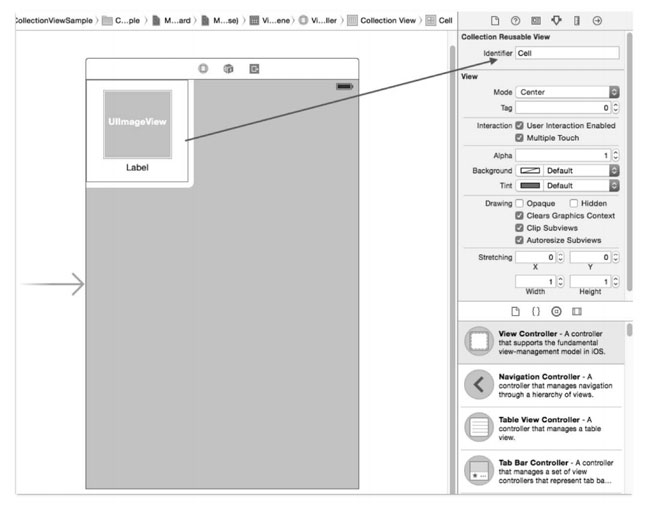

    设定集合视图单元格的属性
    图1、设定集合视图单元格的属性

           2、补充视图
           集合视图单元格可以使用UICollectionView的dequeueReusableSupplementaryViewOfKind:withReuseIdentifier:forIndexPath:方法获得可重用的补充视图,模式代码如下:

           override func collectionView(collectionView: UICollectionView,
            viewForSupplementaryElementOfKind kind: String,
            atIndexPath indexPath: NSIndexPath) -> UICollectionReusableView {

            var headerView: UICollectionReusableView = collectionView.
            dequeueReusableSupplementaryViewOfKind
            (UICollectionElementKindSectionHeader,
            withReuseIdentifier : "HeaderIdentifier", forIndexPath:indexPath)
            as UICollectionReusableView

            ......
            return headerView
           }

           - (UICollectionReusableView *)collectionView:(UICollectionView
            *)collectionView
            viewForSupplementaryElementOfKind:(NSString *)kind
            atIndexPath: (NSIndexPath *)indexPath
           {
            HeaderView *headerView = [collectionView
            dequeueReusableSupplementaryViewOfKind:
            UICollectionElementKindSectionHeader
            withReuseIdentifier:@"HeaderIdentifier" forIndexPath:indexPath];
            headerView.headerLabel.text = [self.eventDate objectAtIndex:indexPath.section];
            return headerView;
           }

           collectionView:viewForSupplementaryElementOfKind:atIndexPath:方法是集合视图的数据源方法,其中HeaderView是我们自定义的继承自UICollectionReusableView的补充视图类。使用dequeueReusableSupplementaryViewOfKind:withReuseIdentifier:forIndexPath:时,需要使用故事板设计UI,并将补充视图的Identifier属性设置为HeaderIdentifier,如图2所示。

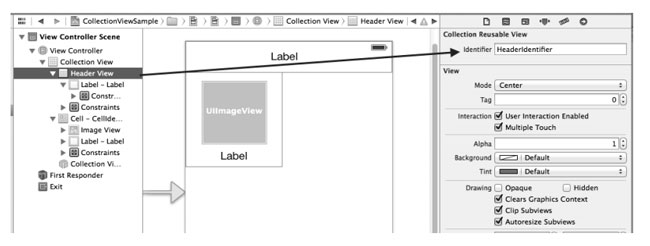

    设定补充视图的属性
    图2、设定补充视图的属性
